WEIGHT PEG
WALL STORAGE

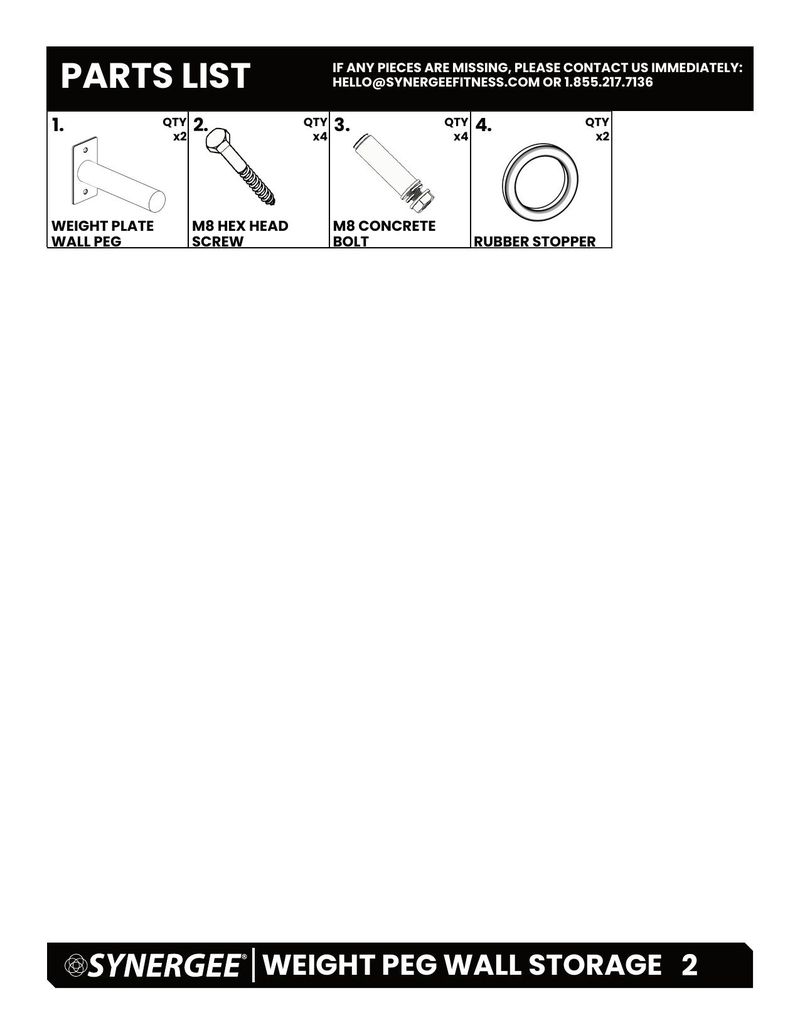

PARTS LIST IF ANY PIECES ARE MISSING, PLEASE CONTACT US IMMEDIATELY:
1. QTY 2. QTY 3. QTY 4. QTY
x2 x4 x4 x2
WEIGHT PLATE M8 HEX HEAD M8 CONCRETE
WALL PEG SCREW BOLT RUBBER STOPPER
WEIGHT PEG WALL STORAGE 2

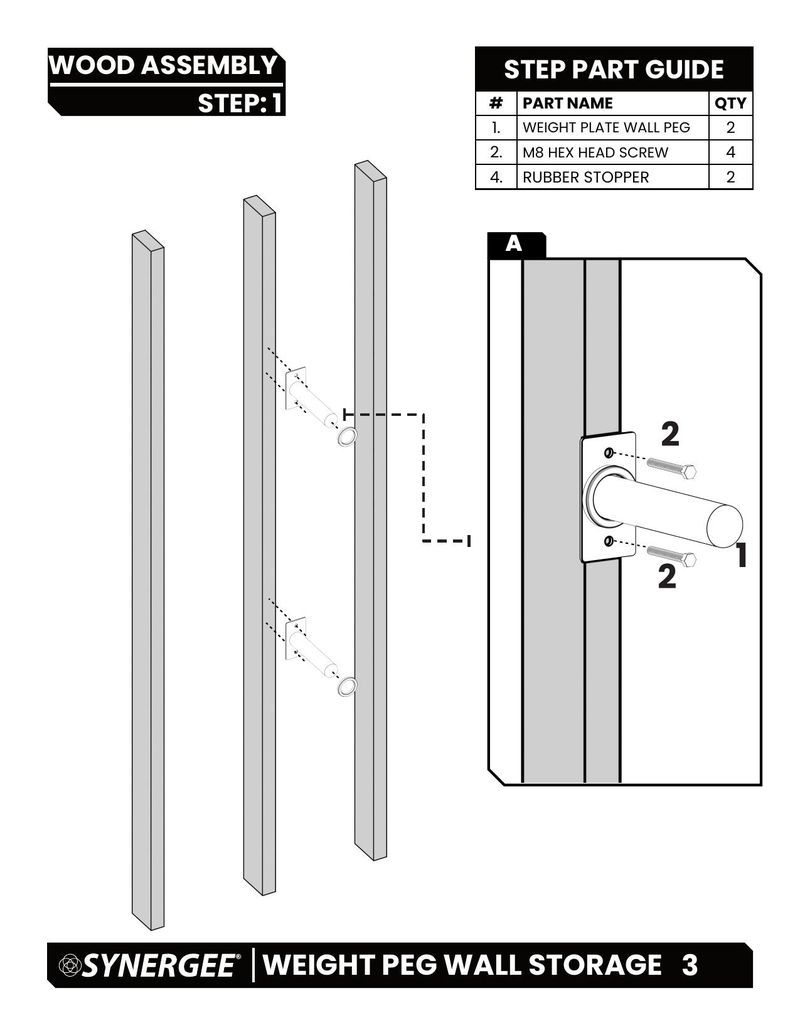

WOOD ASSEMBLY
STEP PART GUIDE
STEP: 1 # PART NAME QTY
1. WEIGHT PLATE WALL PEG 2
2. M8 HEX HEAD SCREW 4
4. RUBBER STOPPER 2
AA
2
1
2
WEIGHT PEG WALL STORAGE 3

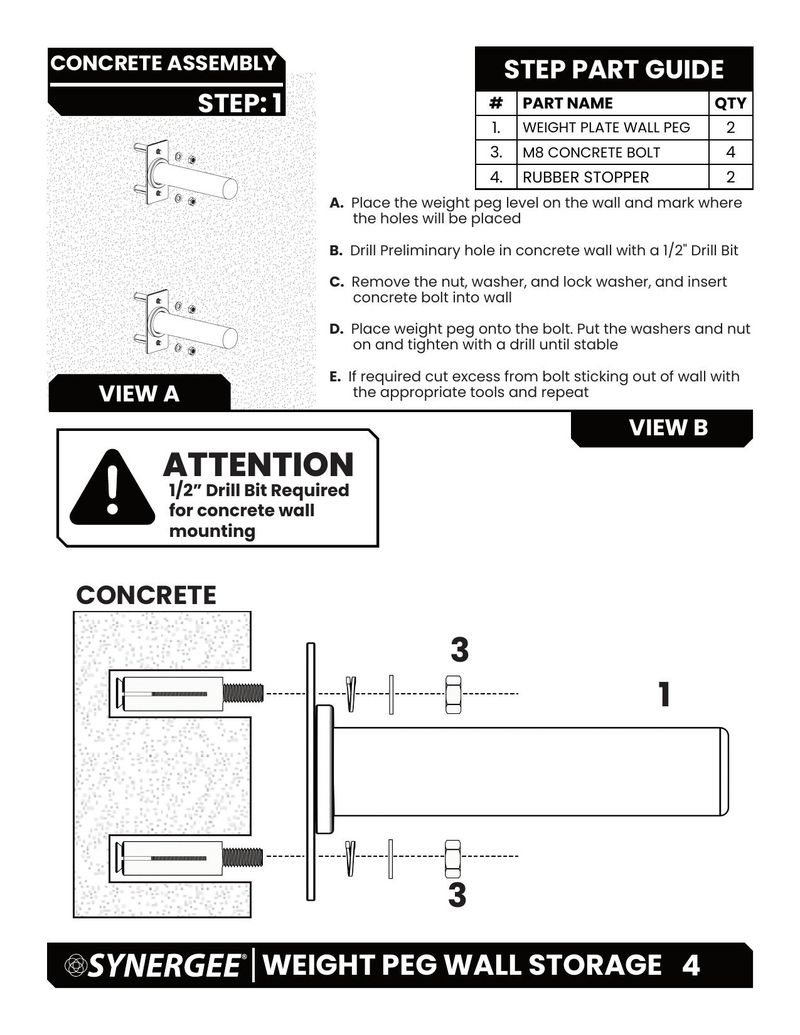

CONCRETE ASSEMBLY
STEP PART GUIDE
STEP: 1 # PART NAME QTY
1. WEIGHT PLATE WALL PEG 2
3. M8 CONCRETE BOLT 4
4. RUBBER STOPPER 2
A. Place the weight peg level on the wall and mark where
the holes will be placed
B. Drill Preliminary hole in concrete wall with a 1/2" Drill Bit
C. Remove the nut, washer, and lock washer, and insert
concrete bolt into wall
D. Place weight peg onto the bolt. Put the washers and nut
on and tighten with a drill until stable
E. If required cut excess from bolt sticking out of wall with
VIEW A the appropriate tools and repeat
VIEW B
ATTENTION
1/2” Drill Bit Required
for concrete wall
mounting
CONCRETE
3
1
3
WEIGHT PEG WALL STORAGE 4
