LANDMINE
IF ANY PIECES ARE MISSING, PLEASE CONTACT US

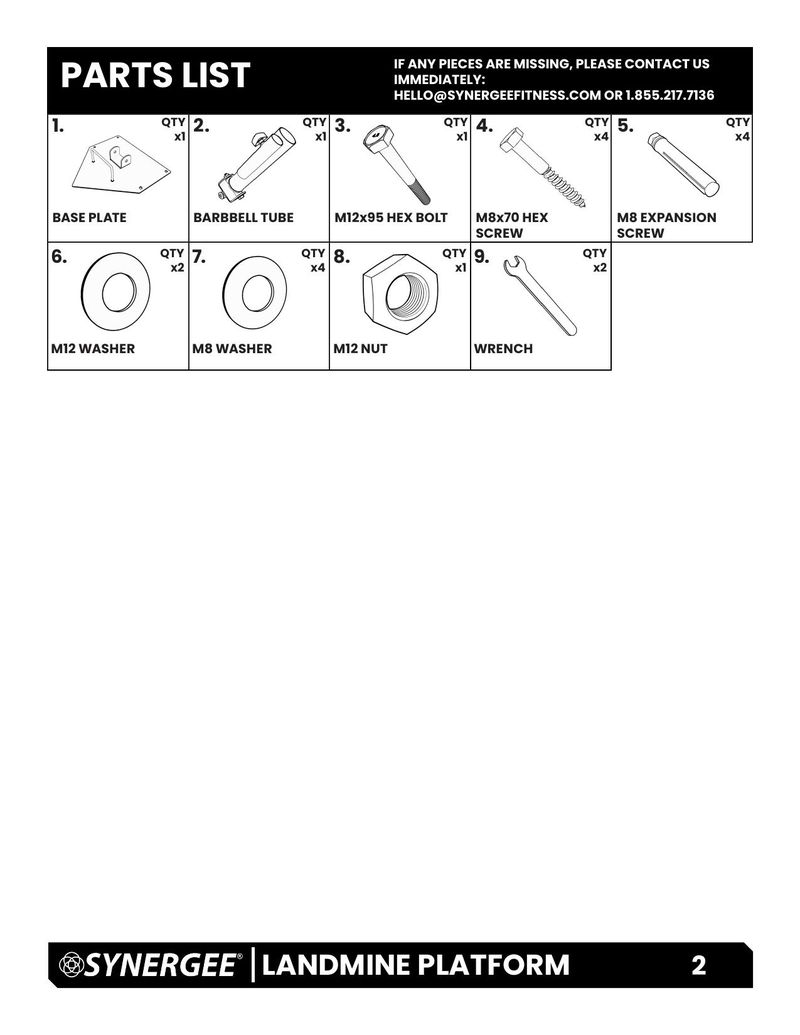

PARTS LIST
IMMEDIATELY:
1. QTY 2. QTY 3. QTY 4. QTY 5. QTY
x1 x1 x1 x4 x4
BASE PLATE BARBBELL TUBE M12x95 HEX BOLT M8x70 HEX M8 EXPANSION
SCREW SCREW
6. QTY 7. QTY 8. QTY 9. QTY
x2 x4 x1 x2
M12 WASHER M8 WASHER M12 NUT WRENCH
POWER
RACK
LANDMINE PLATFORM 2

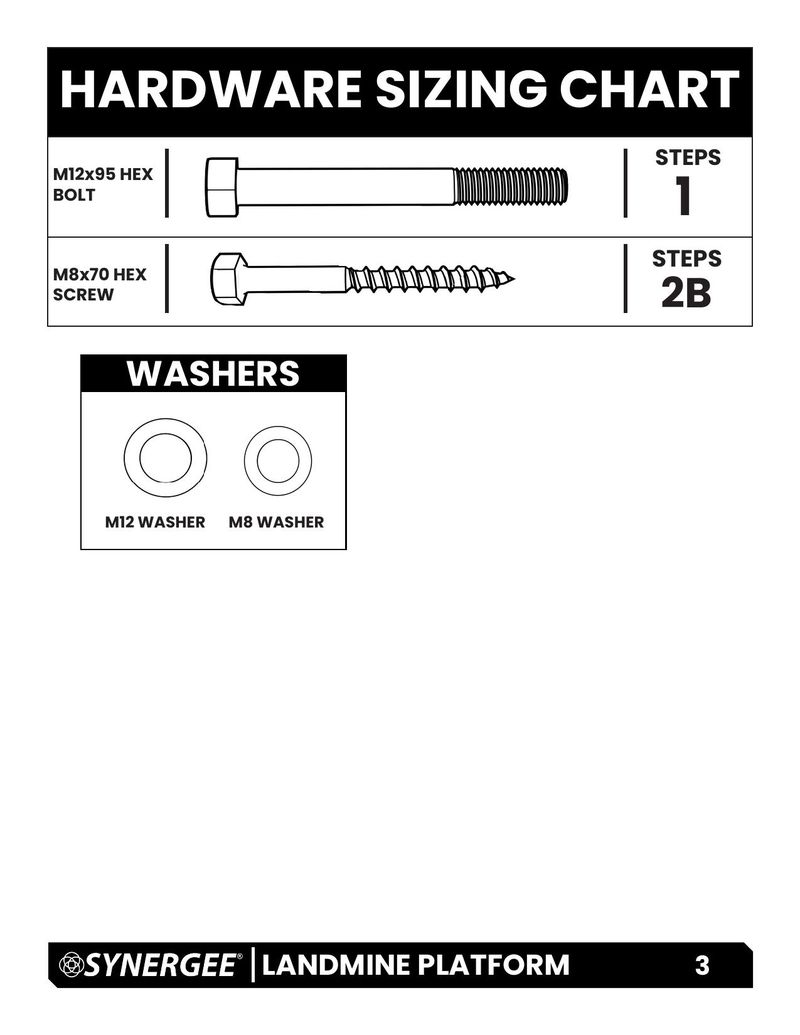

HARDWARE SIZING CHART
STEPS
M12x95 HEX
BOLT 1
STEPS
M8x70 HEX
SCREW 2B
WASHERS
M12 WASHER M8 WASHER
LANDMINE PLATFORM 3

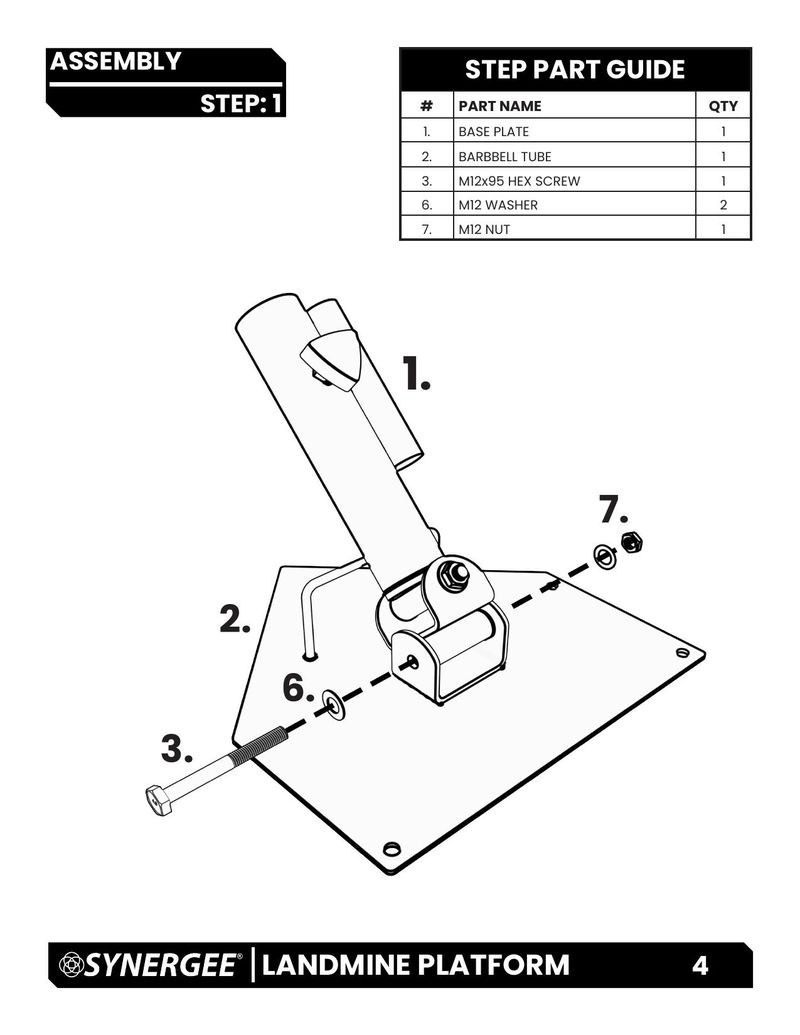

ASSEMBLY
STEP PART GUIDE
STEP: 1 # PART NAME QTY
1. BASE PLATE 1
2. BARBBELL TUBE 1
3. M12x95 HEX SCREW 1
6. M12 WASHER 2
7. M12 NUT 1
1.
7.
2.
6.
3.
LANDMINE PLATFORM 4

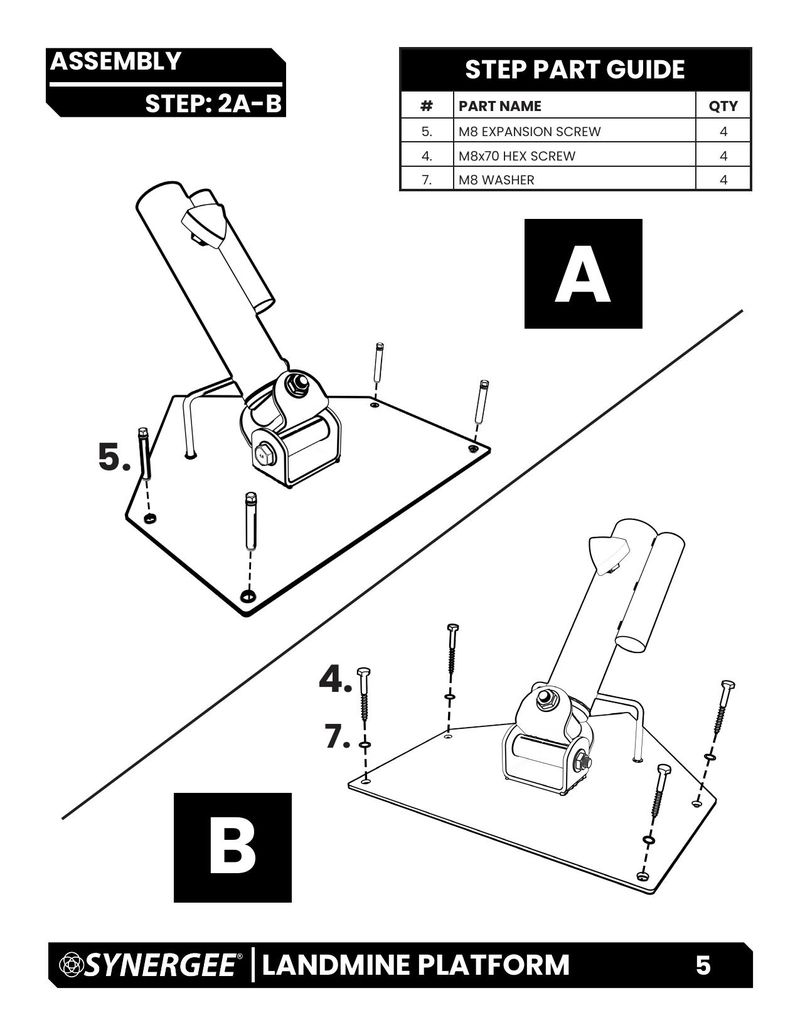

ASSEMBLY
STEP PART GUIDE
STEP: 2A-B # PART NAME QTY
5. M8 EXPANSION SCREW 4
4. M8x70 HEX SCREW 4
7. M8 WASHER 4
A
5.
4.
7.
B
LANDMINE PLATFORM 5
