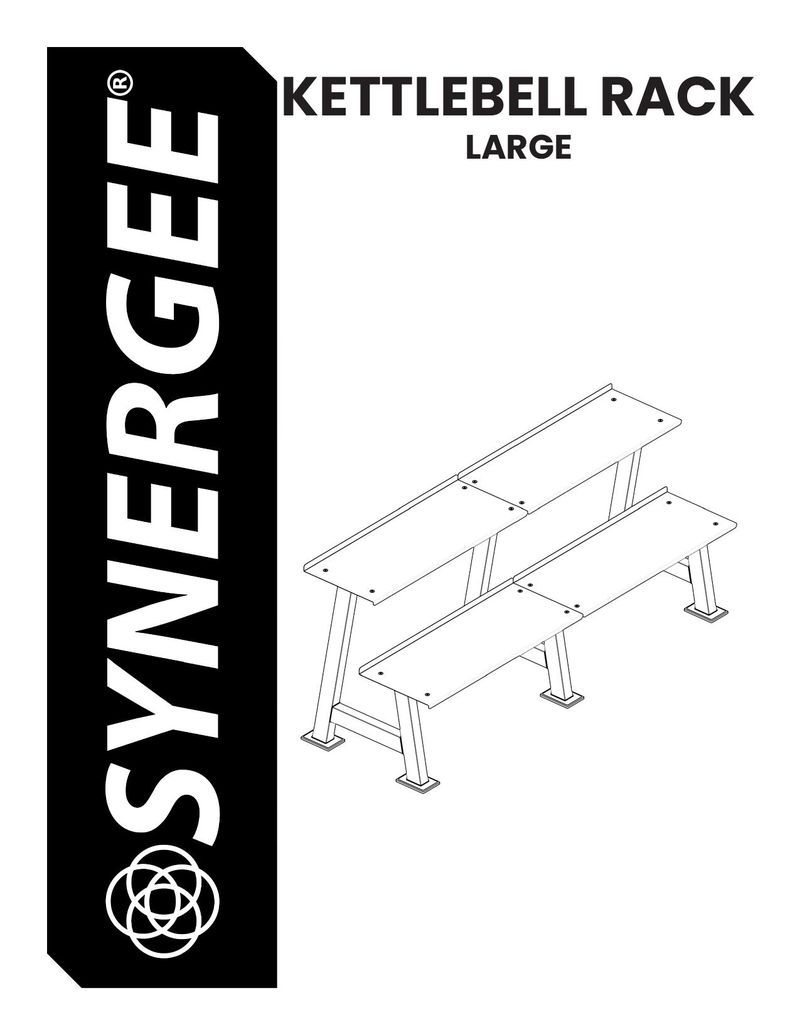

KETTLEBELL RACK
LARGE

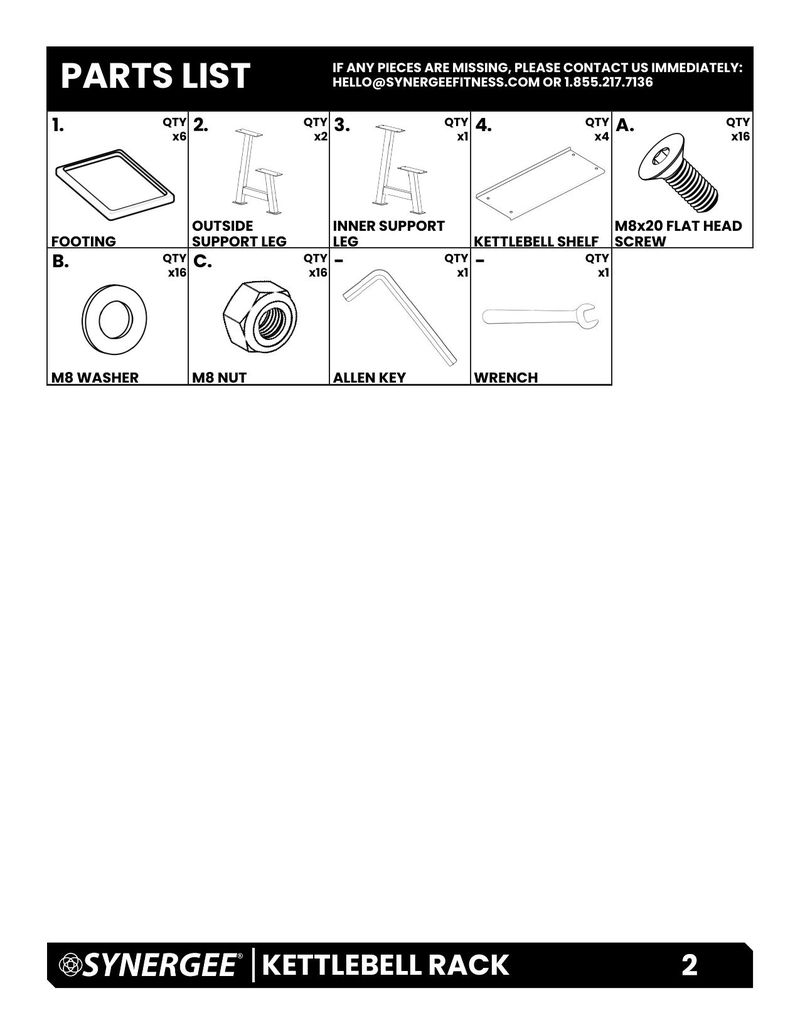

PARTS LIST IF ANY PIECES ARE MISSING, PLEASE CONTACT US IMMEDIATELY:
1. QTY 2. QTY 3. QTY 4. QTY A. QTY
x6 x2 x1 x4 x16
OUTSIDE INNER SUPPORT M8x20 FLAT HEAD
FOOTING SUPPORT LEG LEG KETTLEBELL SHELF SCREW
B. QTY C. QTY - QTY - QTY
x16 x16 x1 x1
M8 WASHER M8 NUT ALLEN KEY WRENCH
KETTLEBELL RACK 2

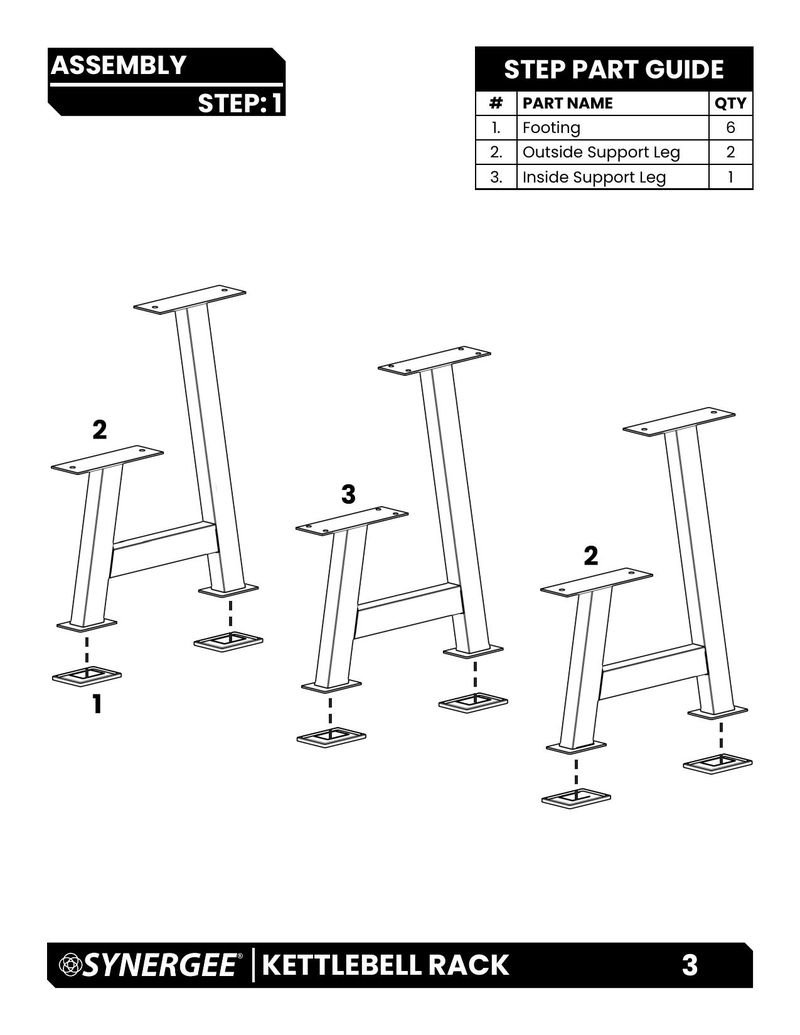

ASSEMBLY
STEP PART GUIDE
STEP: 1 # PART NAME QTY
1. Footing 6
2. Outside Support Leg 2
3. Inside Support Leg 1
2
3
2
1
KETTLEBELL RACK 3

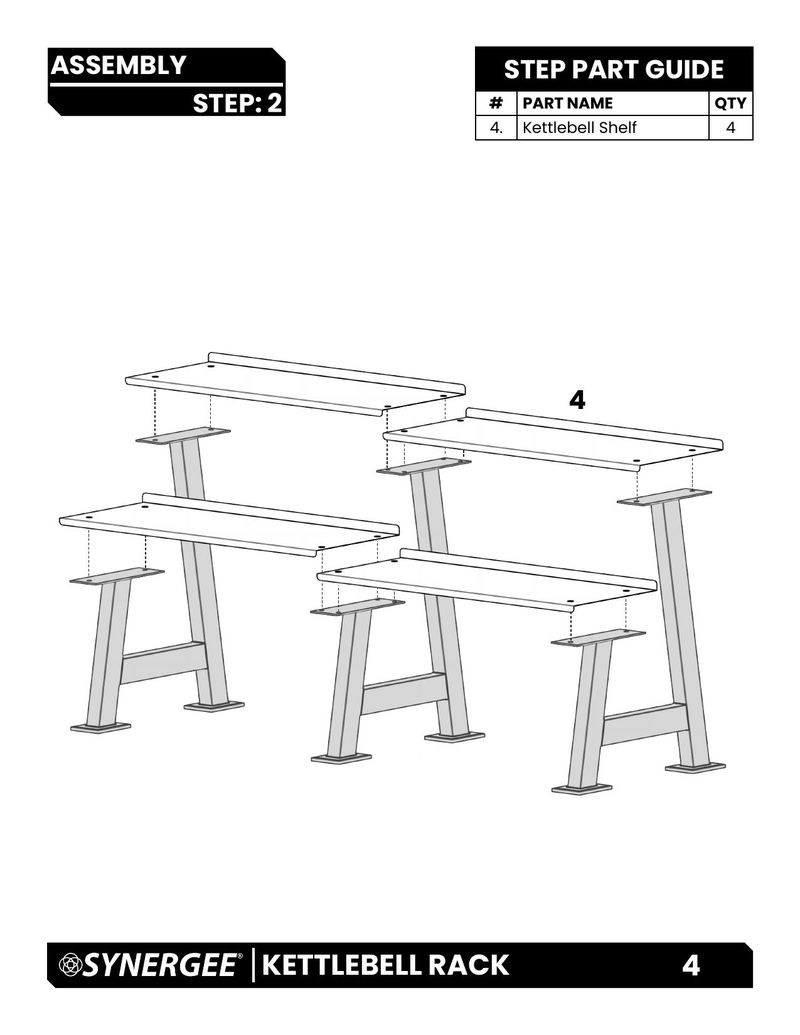

ASSEMBLY
STEP PART GUIDE
STEP: 2 # PART NAME QTY
4. Kettlebell Shelf 4
4
KETTLEBELL RACK 4

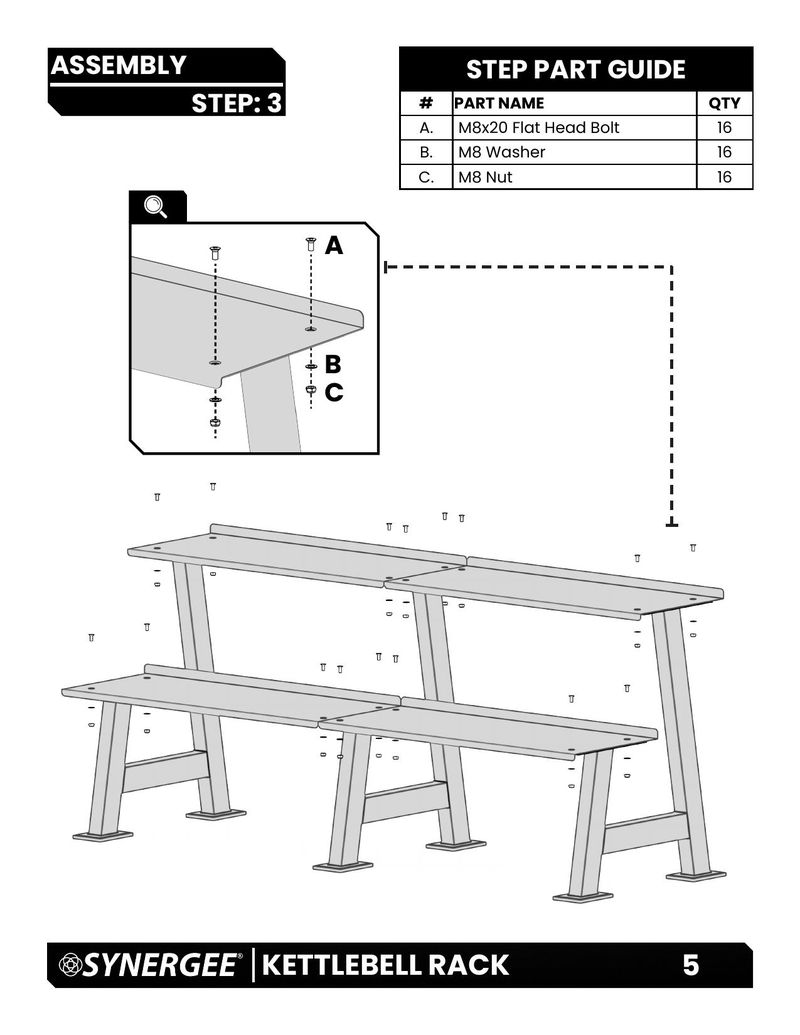

ASSEMBLY
STEP PART GUIDE
STEP: 3 # PART NAME QTY
A. M8x20 Flat Head Bolt 16
B. M8 Washer 16
C. M8 Nut 16
A
B
C
KETTLEBELL RACK 5
