Synergee Kettlebell Storage Rack Small - Manual
Download PDF
KETTLEBELL RACK
SMALL

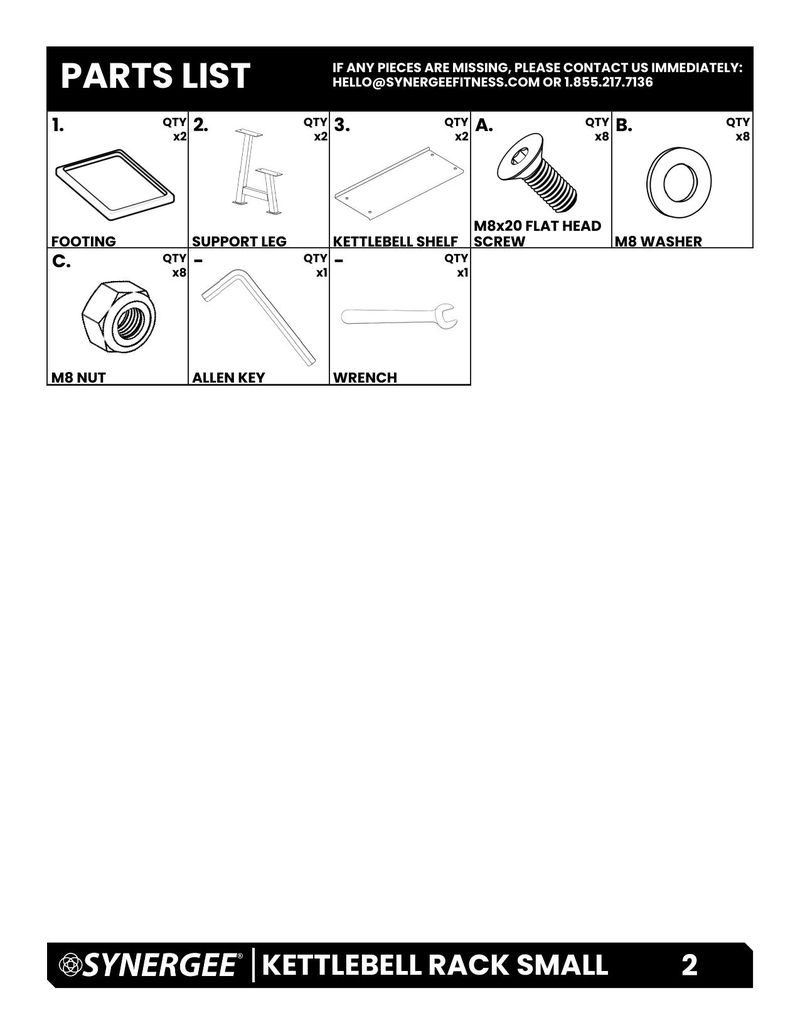

PARTS LIST IF ANY PIECES ARE MISSING, PLEASE CONTACT US IMMEDIATELY:
1. QTY 2. QTY 3. QTY A. QTY B. QTY
x2 x2 x2 x8 x8
M8x20 FLAT HEAD
FOOTING SUPPORT LEG KETTLEBELL SHELF SCREW M8 WASHER
C. QTY - QTY - QTY
x8 x1 x1
M8 NUT ALLEN KEY WRENCH
KETTLEBELL RACK SMALL 2
ASSEMBLY
STEP PART GUIDE

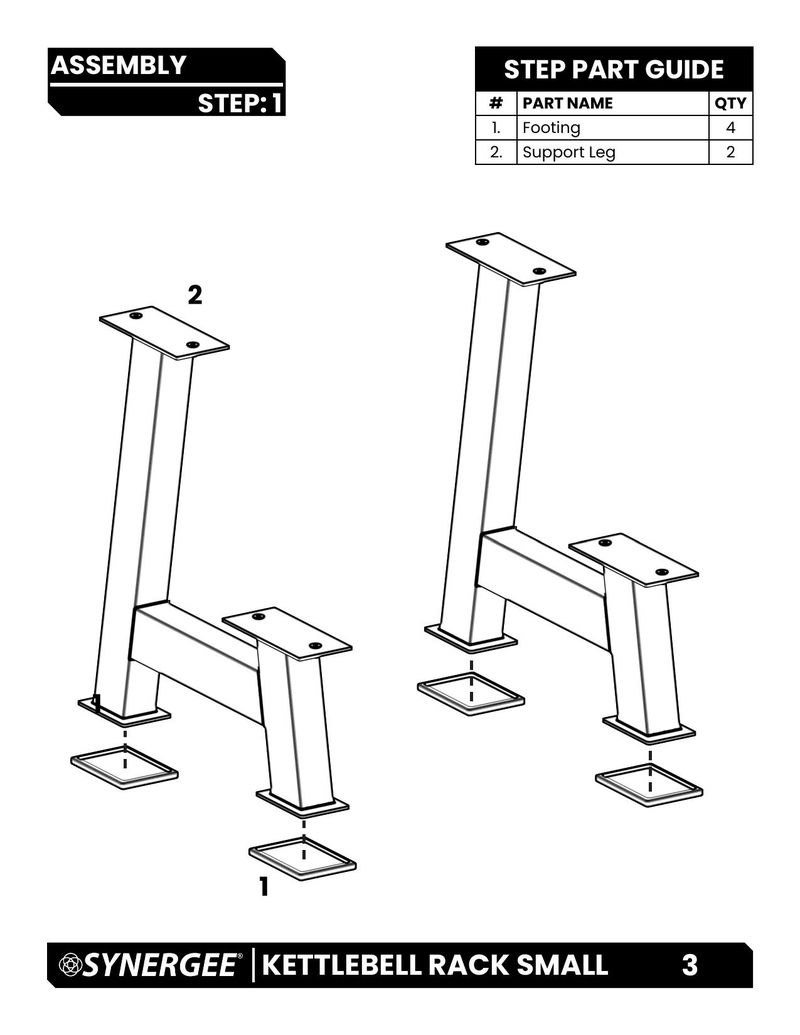

STEP: 1 # PART NAME QTY
1. Footing 4
2. Support Leg 2
2
1
1
KETTLEBELL RACK SMALL 3
ASSEMBLY
STEP PART GUIDE

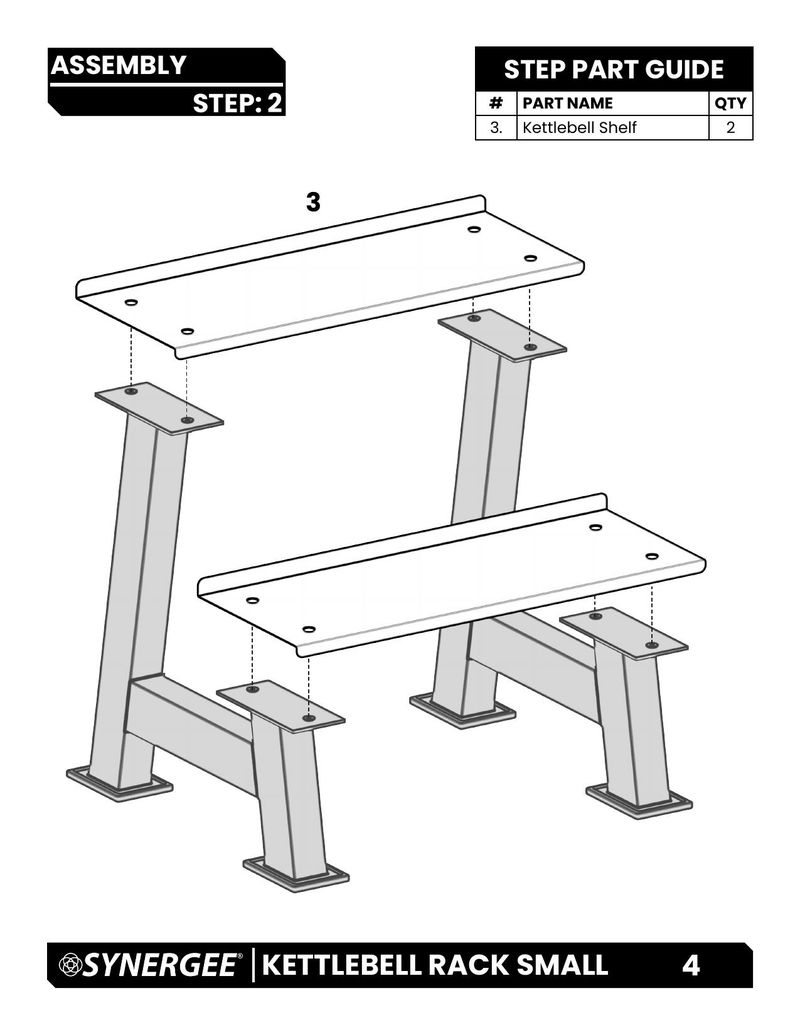

STEP: 2 # PART NAME QTY
3. Kettlebell Shelf 2
3
KETTLEBELL RACK SMALL 4
ASSEMBLY
STEP PART GUIDE

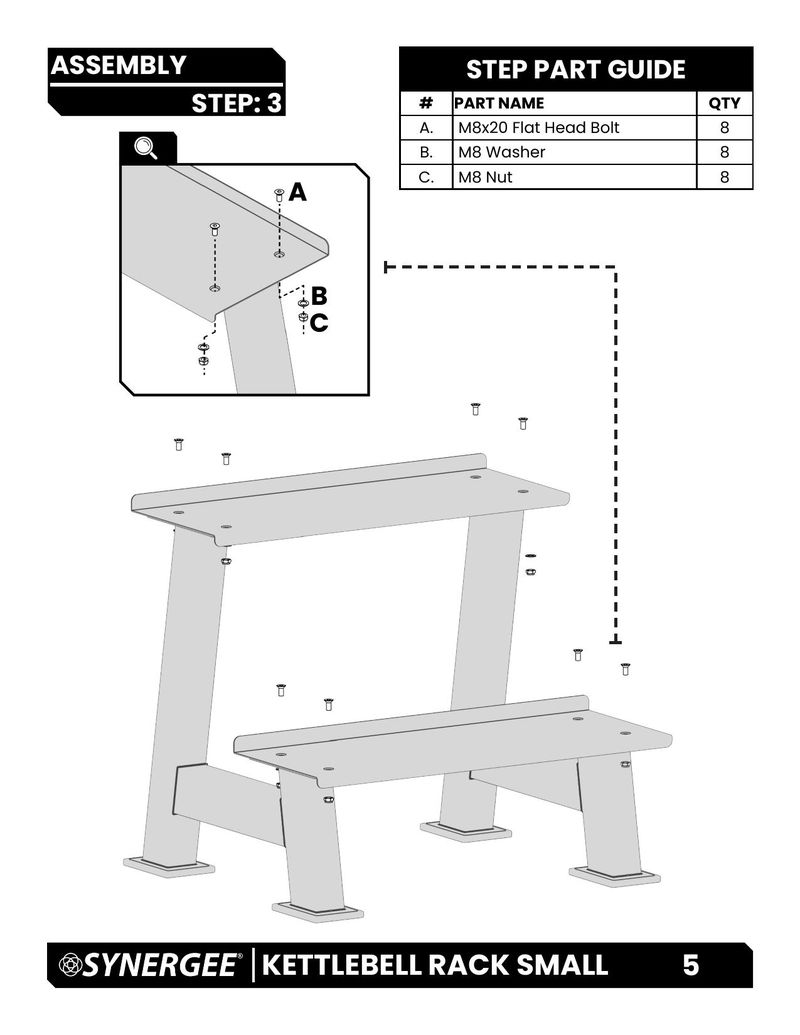

STEP: 3 # PART NAME QTY
A. M8x20 Flat Head Bolt 8
B. M8 Washer 8
C. M8 Nut 8
A
B
C
KETTLEBELL RACK SMALL 5
