ADJUSTABLE
INCLINE DECLINE
BENCH
IF ANY PIECES ARE MISSING, PLEASE CONTACT US IMMEDIATELY:

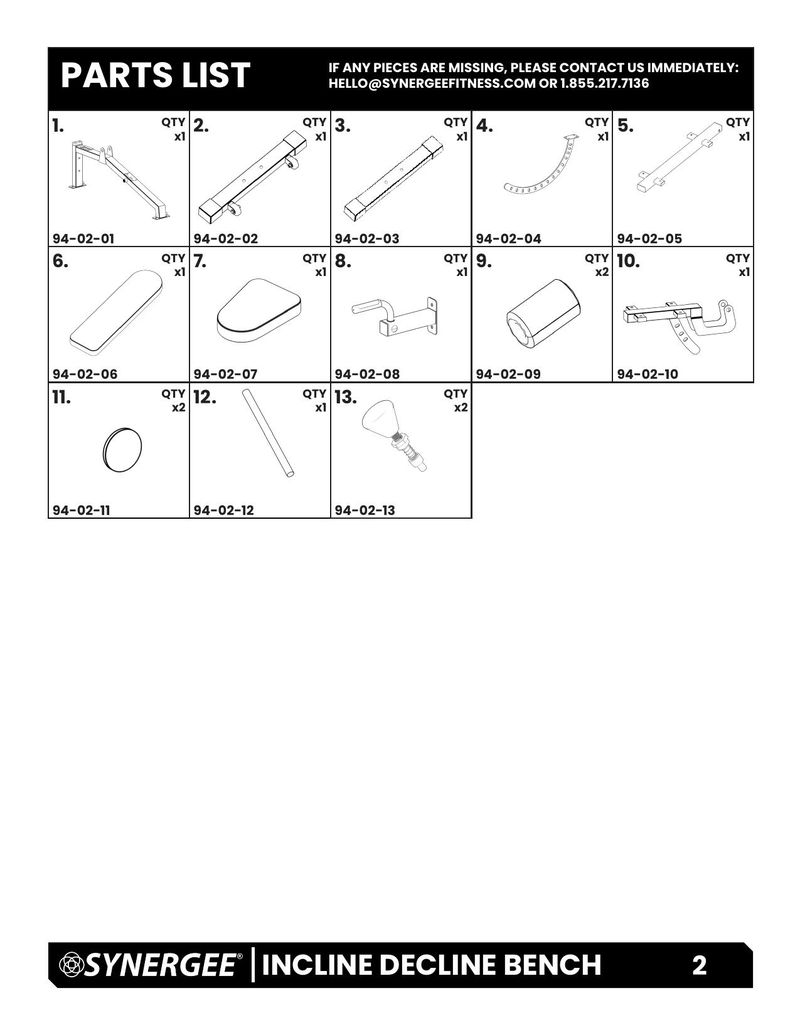

PARTS LIST
1. QTY 2. QTY 3. QTY 4. QTY 5. QTY
x1 x1 x1 x1 x1
94-02-01 94-02-02 94-02-03 94-02-04 94-02-05
6. QTY 7. QTY 8. QTY 9. QTY 10. QTY
x1 x1 x1 x2 x1
94-02-06 94-02-07 94-02-08 94-02-09 94-02-10
11. QTY 12. QTY 13. QTY
x2 x1 x2
94-02-11 94-02-12 94-02-13
INCLINE DECLINE BENCH 2

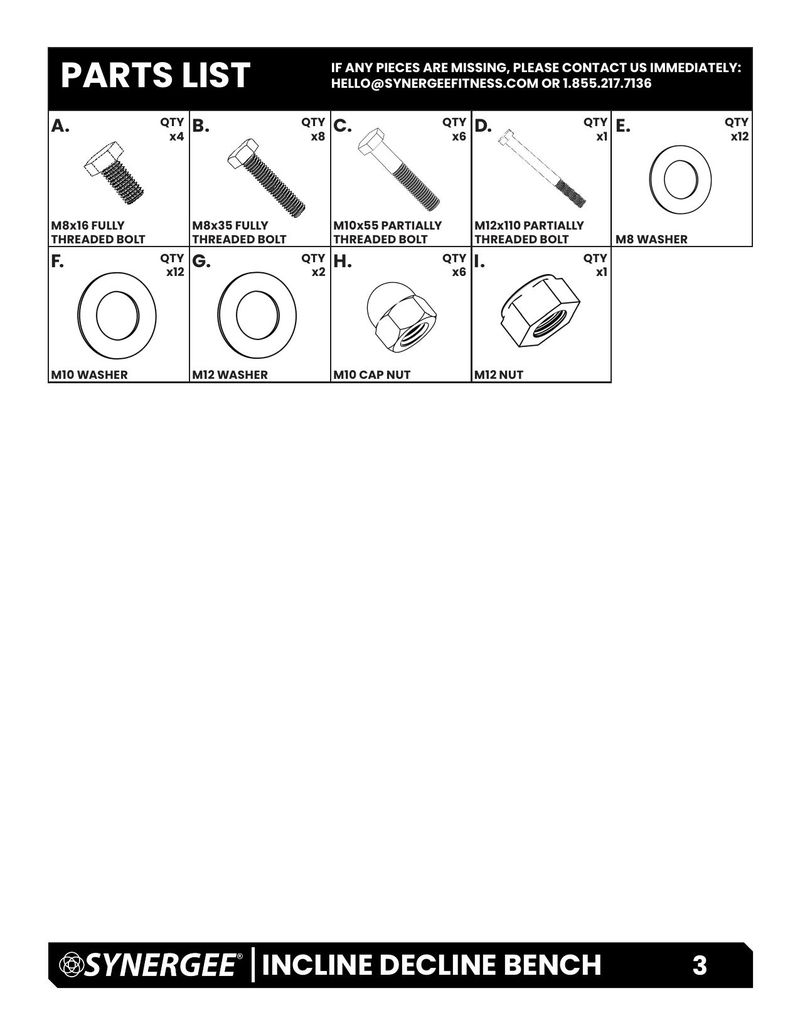

IF ANY PIECES ARE MISSING, PLEASE CONTACT US IMMEDIATELY:
PARTS LIST
A. QTY B. QTY C. QTY D. QTY E. QTY
x4 x8 x6 x1 x12
M8x16 FULLY M8x35 FULLY M10x55 PARTIALLY M12x110 PARTIALLY
THREADED BOLT THREADED BOLT THREADED BOLT THREADED BOLT M8 WASHER
F. QTY G. QTY H. QTY I. QTY
x12 x2 x6 x1
M10 WASHER M12 WASHER M10 CAP NUT M12 NUT
INCLINE DECLINE BENCH 3

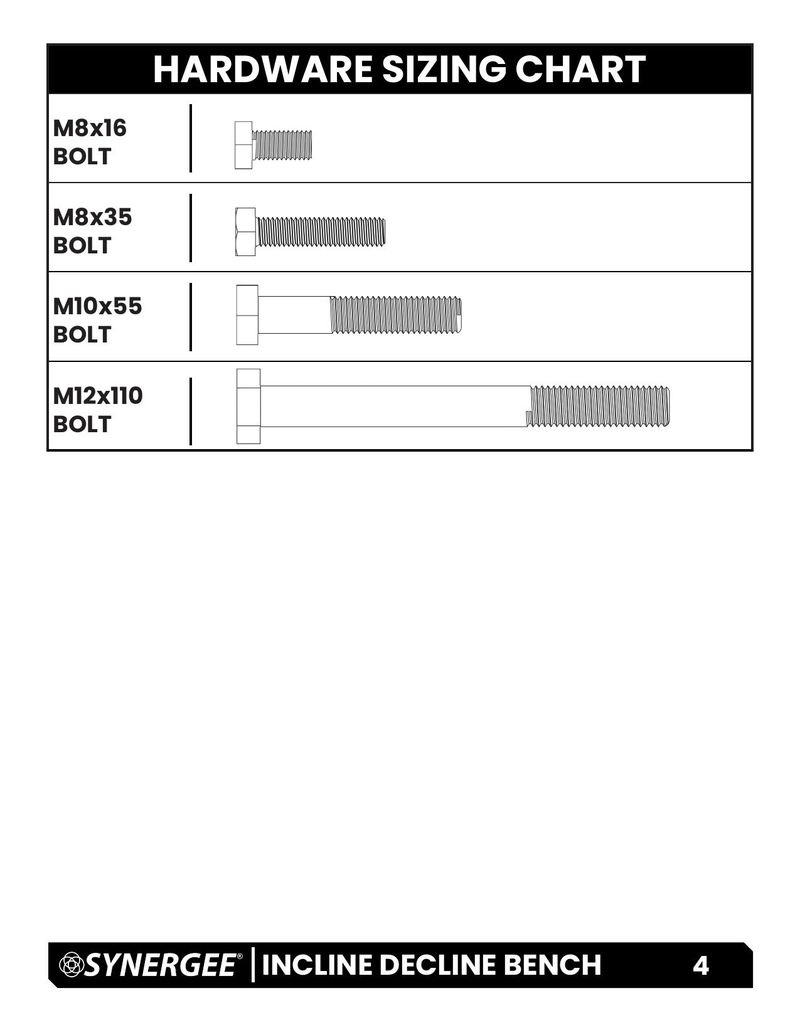

HARDWARE SIZING CHART
M8x16
BOLT
M8x35
BOLT
M10x55
BOLT
M12x110
BOLT
INCLINE DECLINE BENCH 4

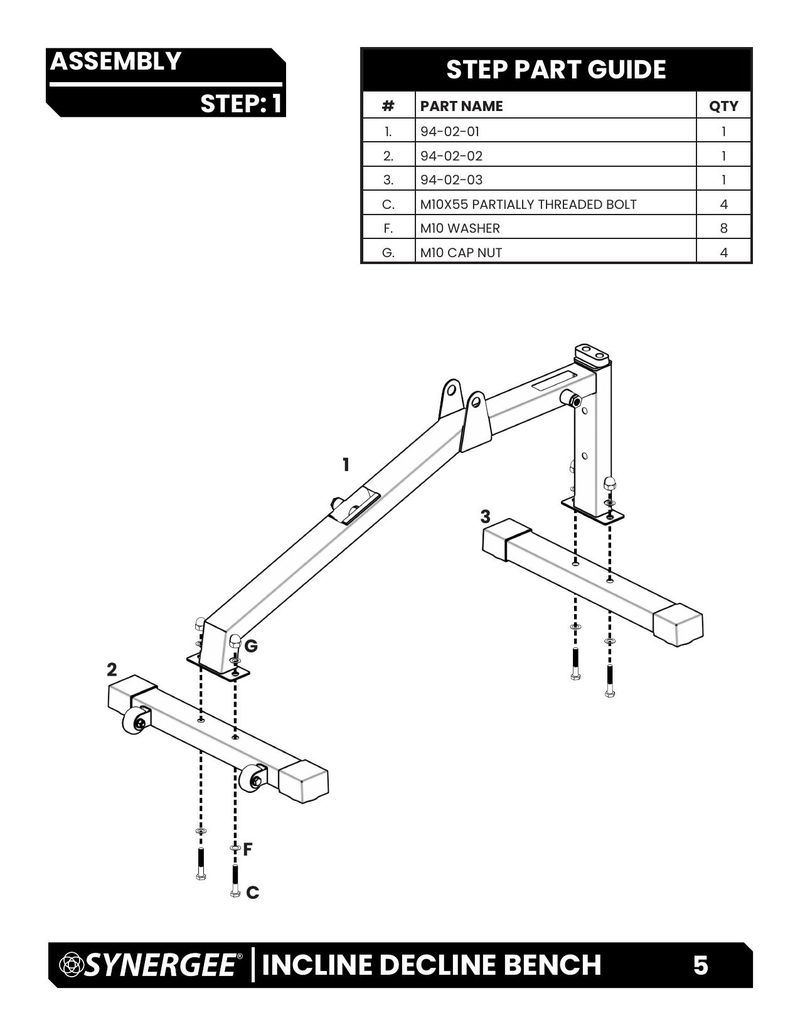

ASSEMBLY
STEP PART GUIDE
STEP: 1 # PART NAME QTY
1. 94-02-01 1
2. 94-02-02 1
3. 94-02-03 1
C. M10X55 PARTIALLY THREADED BOLT 4
F. M10 WASHER 8
G. M10 CAP NUT 4
11
33
GG
22
FF
CC
INCLINE DECLINE BENCH 5

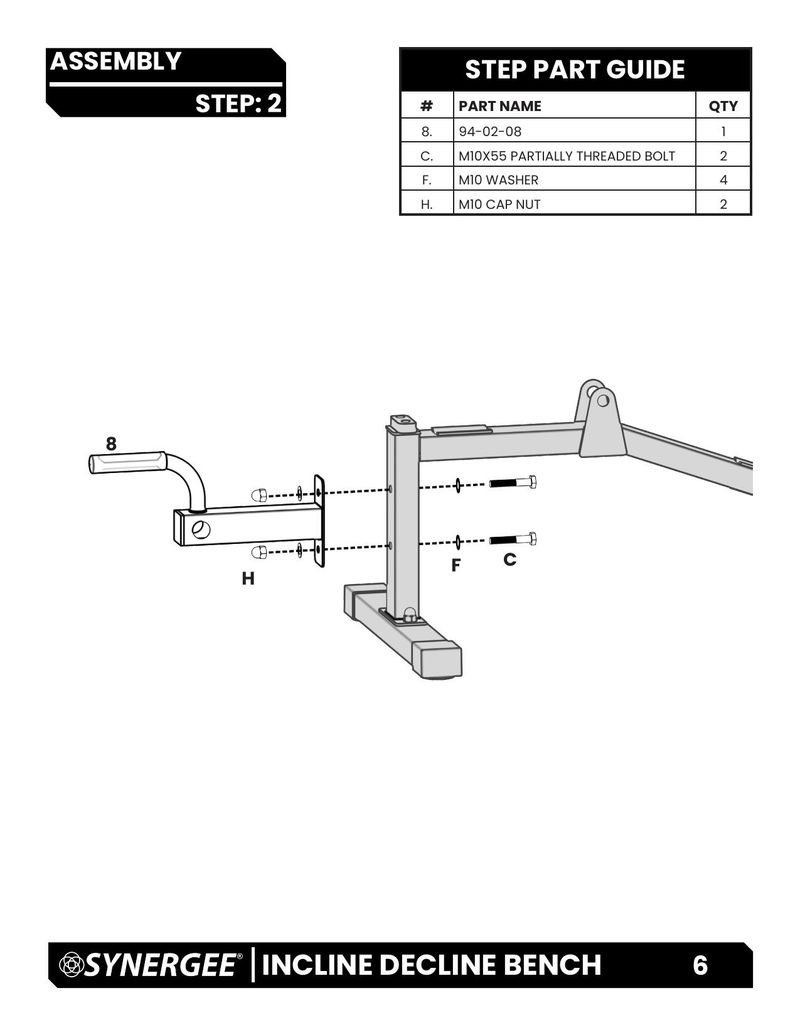

ASSEMBLY
STEP PART GUIDE
STEP: 2 # PART NAME QTY
8. 94-02-08 1
C. M10X55 PARTIALLY THREADED BOLT 2
F. M10 WASHER 4
H. M10 CAP NUT 2
88
CC
FF
HH
INCLINE DECLINE BENCH 6

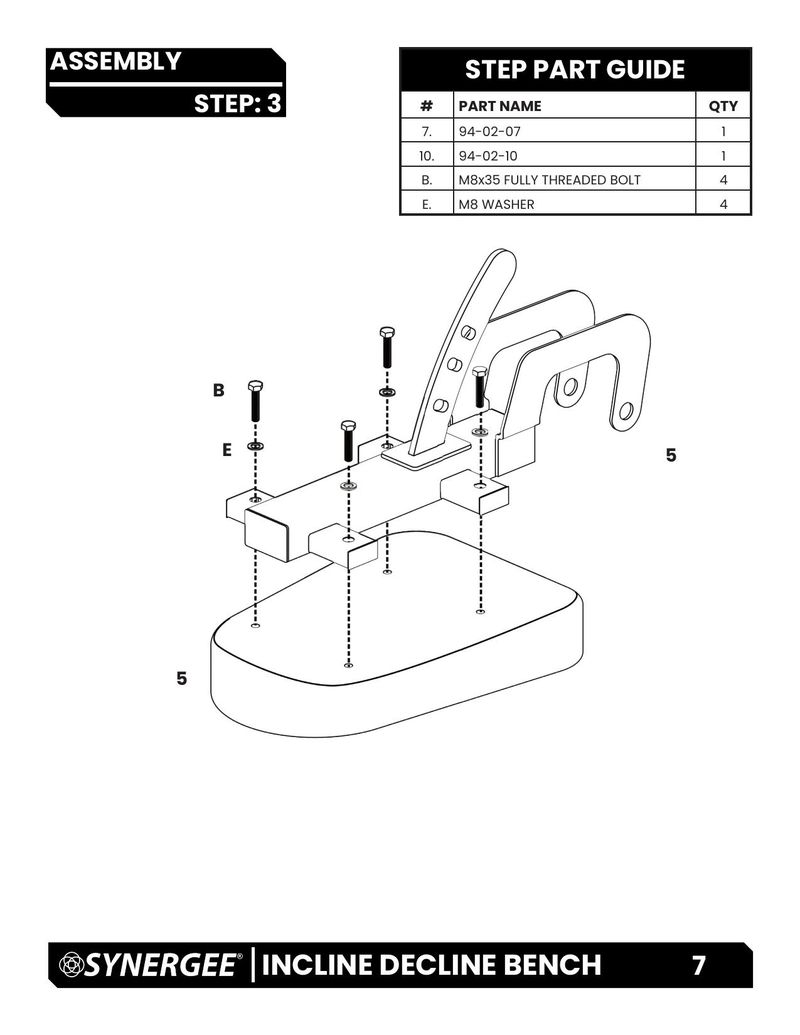

ASSEMBLY
STEP PART GUIDE
STEP: 3
# PART NAME QTY
7. 94-02-07 1
10. 94-02-10 1
B. M8x35 FULLY THREADED BOLT 4
E. M8 WASHER 4
BB
EE
55
55
INCLINE DECLINE BENCH 7

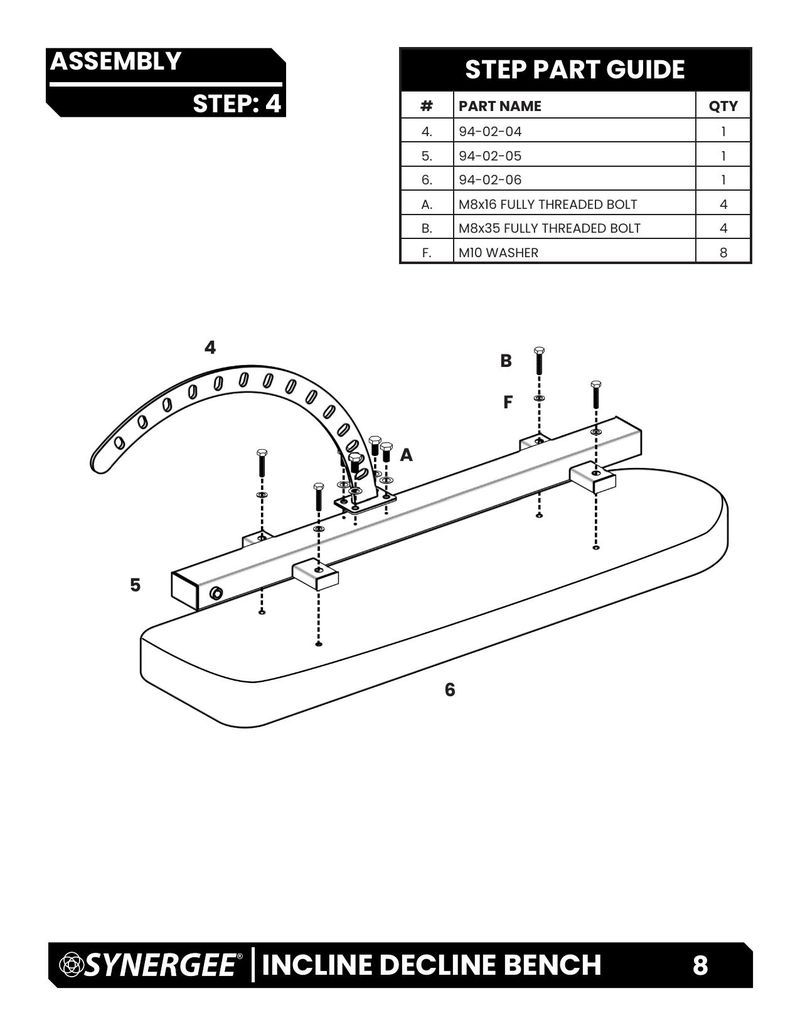

ASSEMBLY
STEP PART GUIDE
STEP: 4 # PART NAME QTY
4. 94-02-04 1
5. 94-02-05 1
6. 94-02-06 1
A. M8x16 FULLY THREADED BOLT 4
B. M8x35 FULLY THREADED BOLT 4
F. M10 WASHER 8
44
BB
FF
AA
55
66
INCLINE DECLINE BENCH 8

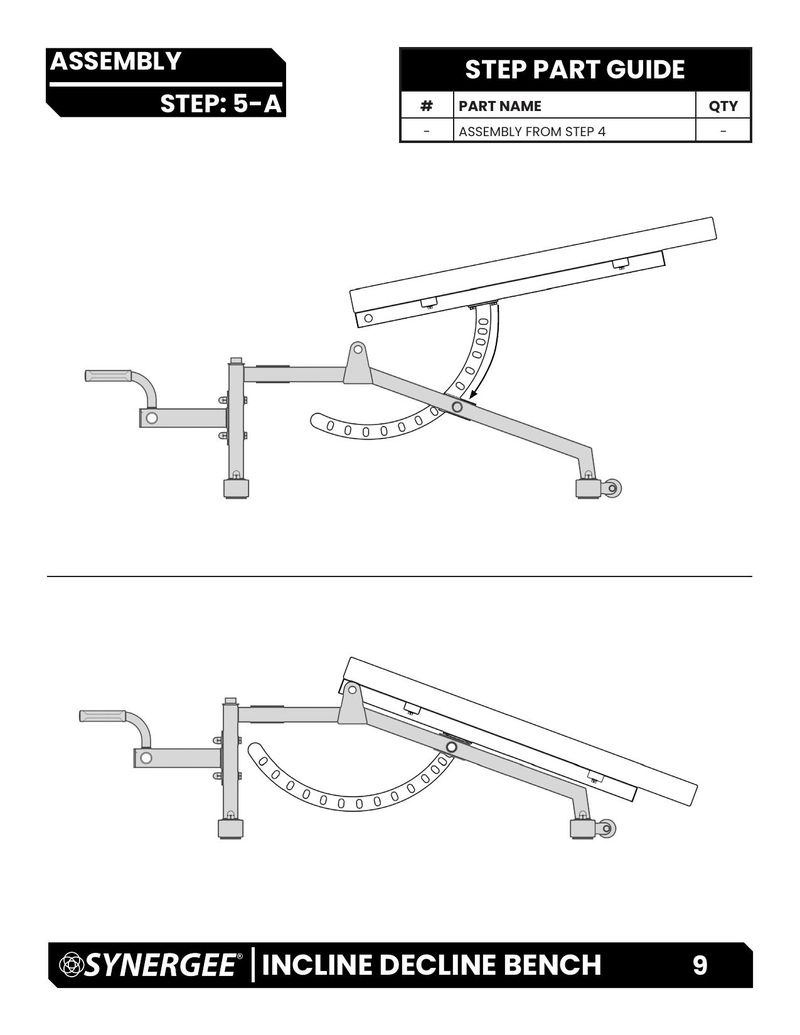

ASSEMBLY
STEP PART GUIDE
STEP: 5-A # PART NAME QTY
- ASSEMBLY FROM STEP 4 -
INCLINE DECLINE BENCH 9

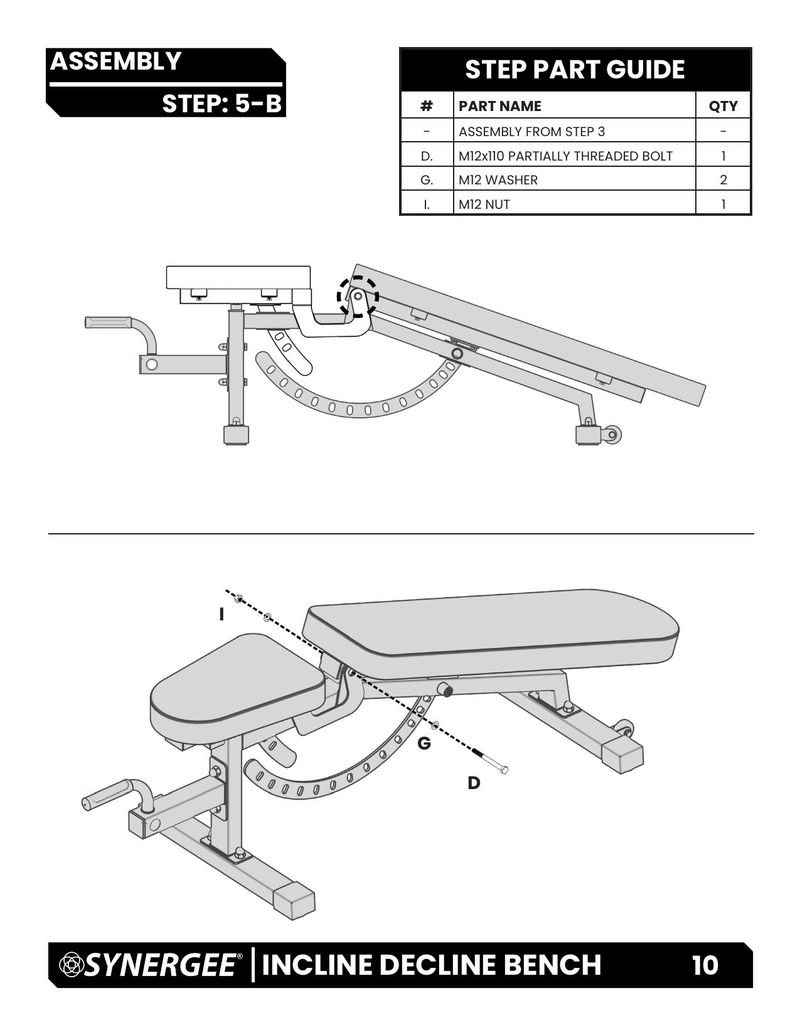

ASSEMBLY
STEP PART GUIDE
STEP: 5-B # PART NAME QTY
- ASSEMBLY FROM STEP 3 -
D. M12x110 PARTIALLY THREADED BOLT 1
G. M12 WASHER 2
I. M12 NUT 1
II
GG
DD
INCLINE DECLINE BENCH 10

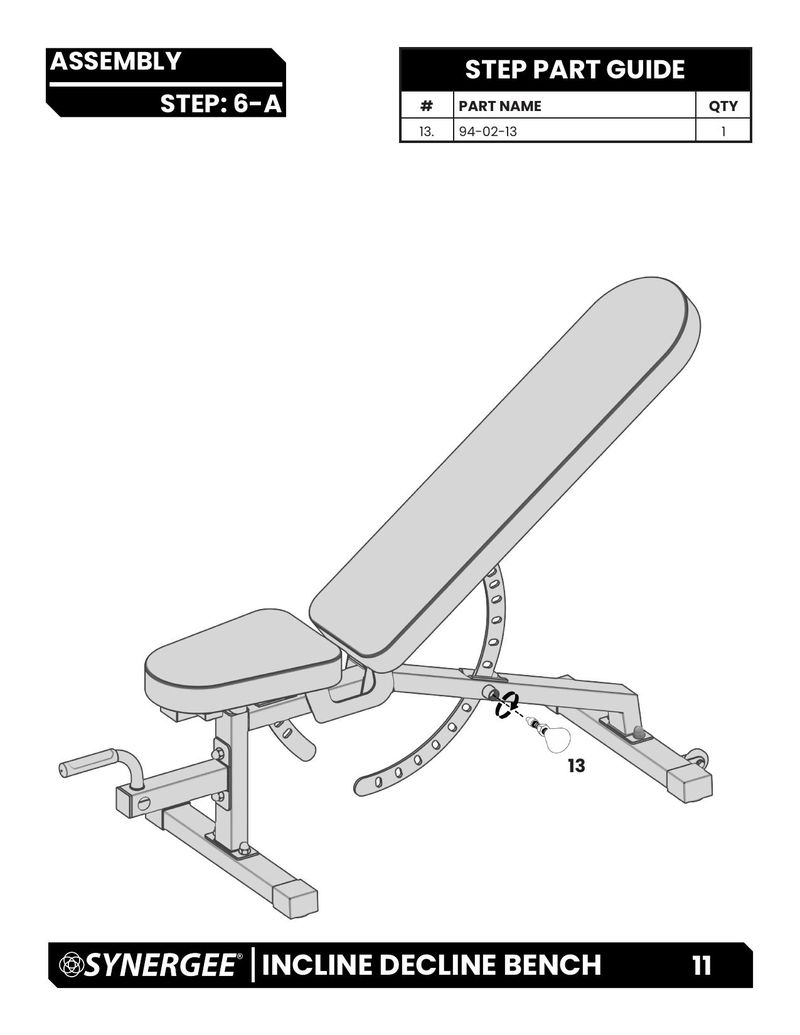

ASSEMBLY
STEP PART GUIDE
STEP: 6-A # PART NAME QTY
13. 94-02-13 1
1133
INCLINE DECLINE BENCH 11

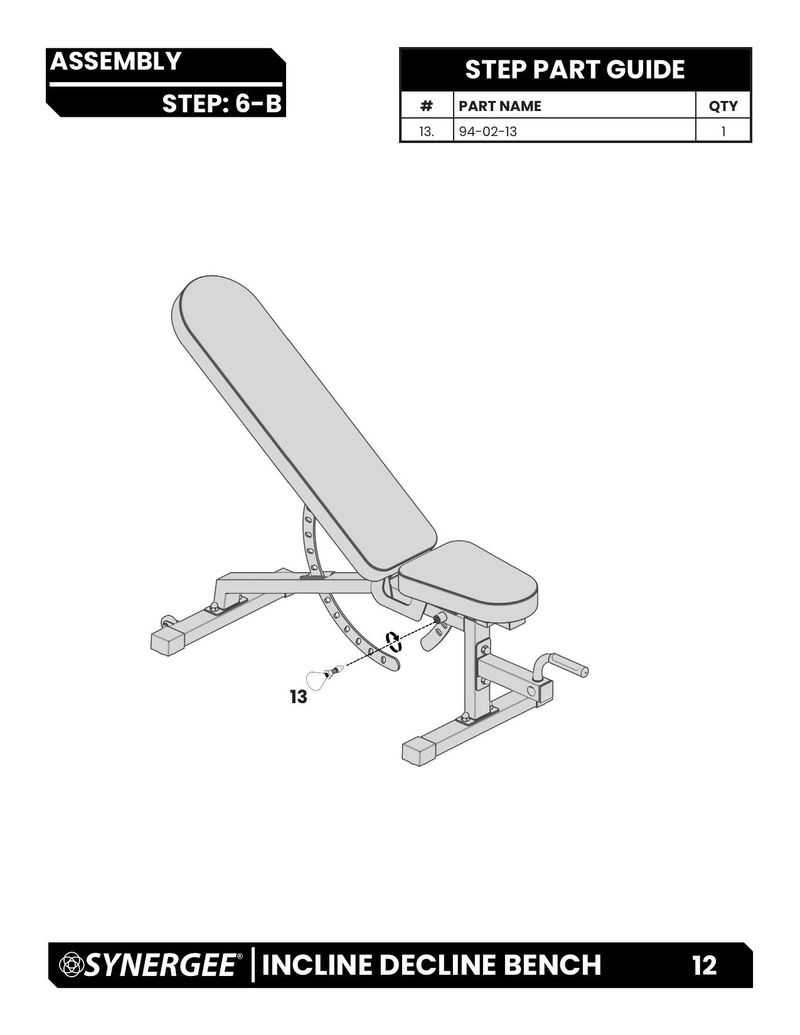

ASSEMBLY
STEP PART GUIDE
STEP: 6-B # PART NAME QTY
13. 94-02-13 1
1133
INCLINE DECLINE BENCH 12

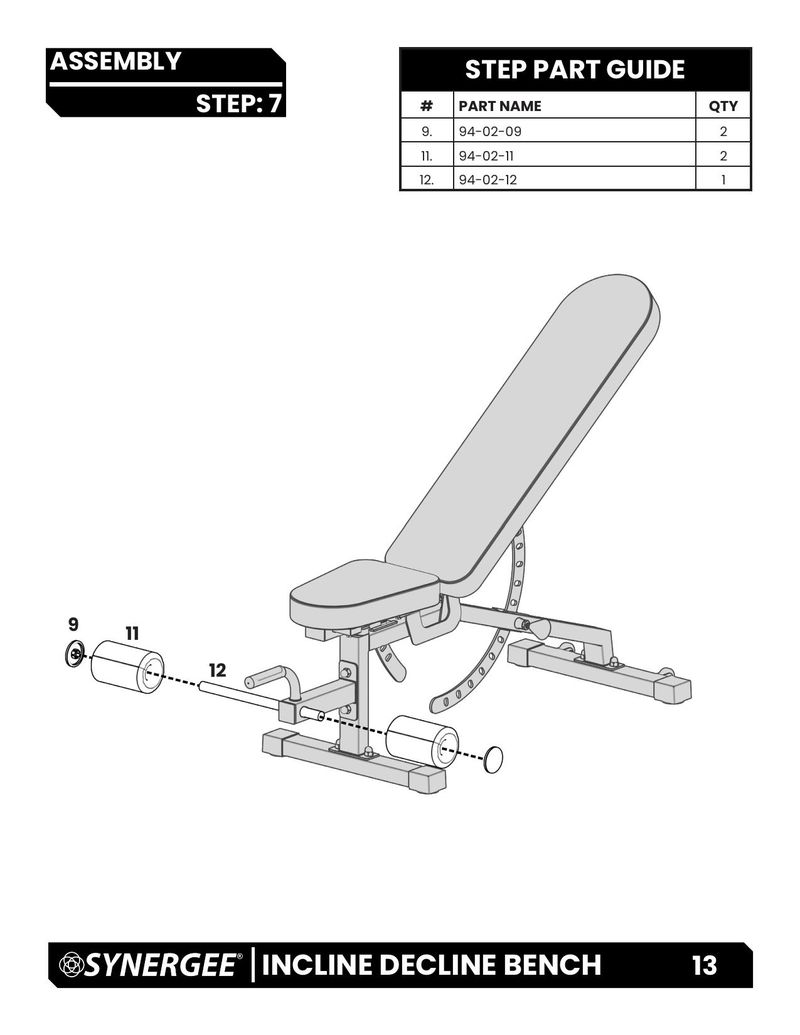

ASSEMBLY
STEP PART GUIDE
STEP: 7 # PART NAME QTY
9. 94-02-09 2
11. 94-02-11 2
12. 94-02-12 1
99
1111
1122
INCLINE DECLINE BENCH 13
